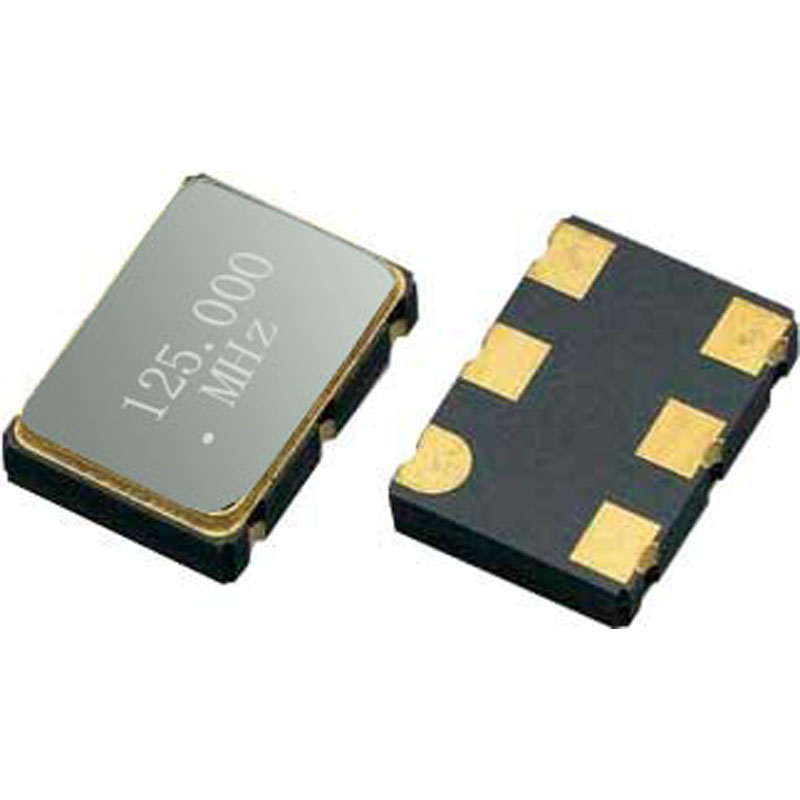

VCXO CMOS 5.0×3.2×1.2
- 详细介绍
Size: 5.0×3.2×1.2mm Series SMD VCXO
Features
Voltage Controlled Crystal Oscillator (VCXO).
Fundamental solution.
Package size: 5.0×3.2×1.2 mm.
CMOS output, output frequencies 50MHz to
200MHz.
Wide pull range and good linearity.
Excellent low phase noise and jitter.
3-state function available.
Automatic mounting and reflow soldering.
Applications: SDH, SONET, Ethernet, Base
Stations, Femtocell, Satellite, etc.
Electrical Specifications
* APR=(Pull Range)-(Frequency tolerance at 25°C, variation over temperature, supply voltage variation, and aging. )
Dimensions Units:mm
Features
Voltage Controlled Crystal Oscillator (VCXO).
Fundamental solution.
Package size: 5.0×3.2×1.2 mm.
CMOS output, output frequencies 50MHz to
200MHz.
Wide pull range and good linearity.
Excellent low phase noise and jitter.
3-state function available.
Automatic mounting and reflow soldering.
Applications: SDH, SONET, Ethernet, Base
Stations, Femtocell, Satellite, etc.
Electrical Specifications
| Item /Type | (SMD 5032 VCXO) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Oscillation Mode | Fundamental |
| Supply voltage | 3.3V |
| Frequency range | 50MHz~200MHz |
| Frequency Stability | ±25ppm, ±50ppm, ±100ppm |
| Operating Temperature Range | -20~+70°C, -40~+85°C, or specify |
| Storage Temperature Range | -55~+125°C |
| Voltage Vol (Typ.) / Voh (Typ.) | 0.1VDD / 0.9VDD |
| Rise(Tr) / Fall(Tf) Time(20%~80%) | 5nS Max. |
| Supply Current | 60mA Max. |
| Symmetry | 45~55% |
| Start-up Time | 10ms Max. |
| Absolute Pulling Range (APR)* | ±50ppm Min.,or specify |
| Nominal Control Voltage | 0.5VDD |
| Control Voltage Range | 0~VDD |
| Linearity | 10% Max |
| Phase Jitter(12KHz~20MHz) | 1pS Max |
* APR=(Pull Range)-(Frequency tolerance at 25°C, variation over temperature, supply voltage variation, and aging. )
Dimensions Units:mm
