VCXO LVPECL /LVDS 5.0×3.2×1.2
- 详细介绍

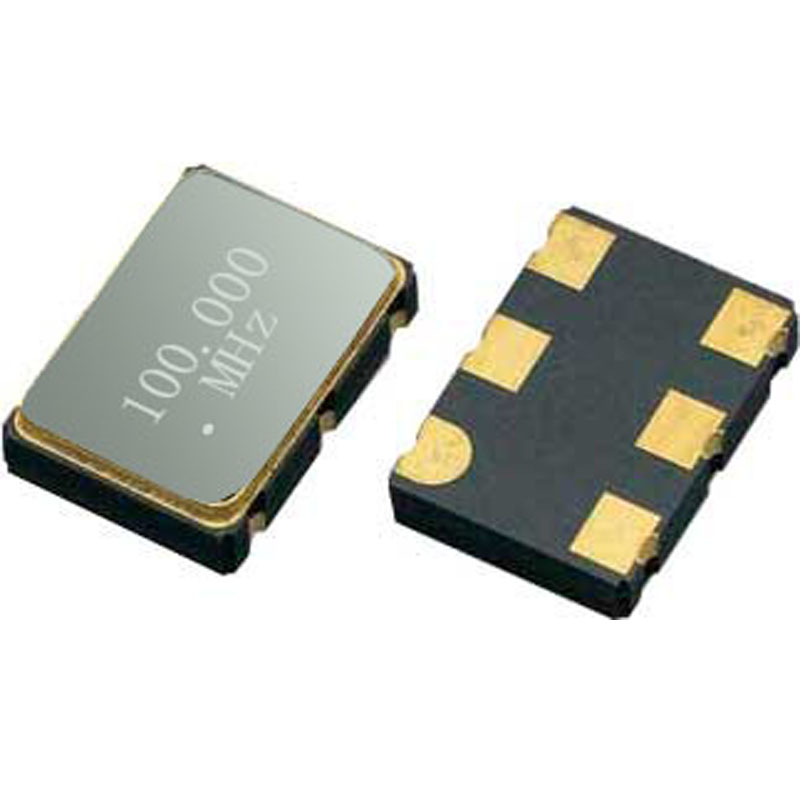

Size: 5.0×3.2×1.2mm SMD LVPECL /LVDS VCXO
Features
Voltage Controlled Crystal Oscillator (VCXO).
Fundamental solution.
Package size: 5.0×3.2×1.2 mm.
LVPECL /LVDS output, output frequencies
50MHz to 200MHz.
Wide pull range and good linearity.
Excellent low phase noise and jitter.
3-state function available.
l Automatic mounting and reflow soldering.
Applications: SDH, SONET, Ethernet, Base
Stations, Femtocell, Satellite, etc.
Electrical Specifications
* APR=(Pull Range)-(Frequency tolerance at 25°C, variation over temperature, supply voltage variation, and aging. )
Dimensions Units:mm
Features
Voltage Controlled Crystal Oscillator (VCXO).
Fundamental solution.
Package size: 5.0×3.2×1.2 mm.
LVPECL /LVDS output, output frequencies
50MHz to 200MHz.
Wide pull range and good linearity.
Excellent low phase noise and jitter.
3-state function available.
l Automatic mounting and reflow soldering.
Applications: SDH, SONET, Ethernet, Base
Stations, Femtocell, Satellite, etc.
Electrical Specifications
| Item /Type | (SMD 5032 VCXO) | |
| Output Type | LVPECL | LVDS |
| Output Load | 50Ω to VDD-2V | 100Ω |
| Oscillation Mode | Fundamental | |
| Supply voltage | 3.3V | |
| Frequency range | 50MHz~200MHz | |
| Frequency Stability | ±25ppm, ±50ppm, ±100ppm | |
| Operating Temperature Range | -20~+70°C, -40~+85°C, or specify | |
| Storage Temperature Range | -55~+125°C | |
| Voltage Vol (Typ.) / Voh (Typ.) | VDD-1.62V / VDD-1.025 | 0.9VDD / 1.6VDD |
| Rise(Tr) / Fall(Tf) Time(20%~80%) | 1nS Max. | |
| Supply Current | 80mA Max. | |
| Symmetry | 45~55% | |
| Start-up Time | 10ms Max. | |
| Absolute Pulling Range (APR)* | ±50ppm Min.,or specify | |
| Nominal Control Voltage | 0.5VDD | |
| Control Voltage Range | 0~VDD | |
| Linearity | 10% Max | |
| Phase Jitter(12KHz~20MHz) | 1pS Max | |
