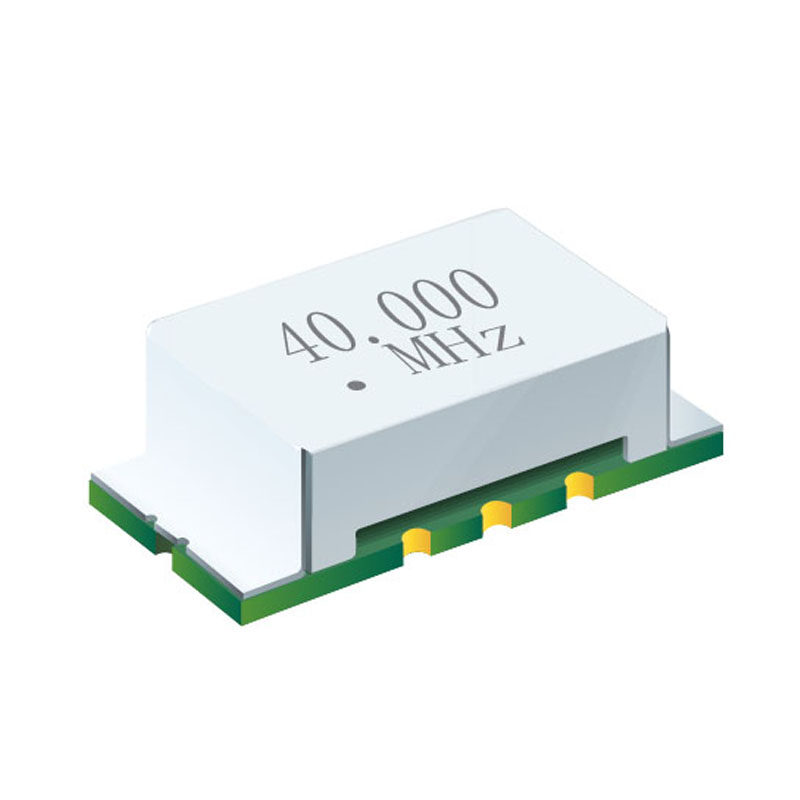

Thru-Hole TCXO 14.3×8.7×4.9 mm
温度补偿晶体振荡器
- 详细介绍
Temperature Compensated Crystal Oscillator
Size: 14.3×8.7×4.9 mm
Features
Metal cover, FR-4 PCB based.
Output: TTL/CMOS or Clipped Sine Wave.
Low current option(2mA for Clipped Sine Wave).
VC-TCXO available.
Automatic mounting and reflow soldering.
Applications: Marine communication, Mobile
communication, Aerial radio, Satellite,
Femtocell, Test equipment, Avionics, etc.
High stability and high reliability.
RoHS Compliant / Pb-Free.
Electrical Specifications
| Item /Type | Thru-Hole TCXO | |||
| Output Type | TTL/CMOS | Clipped Sine Wave | ||
| Output Load | 15pF | 10KΩ //10pF | ||
| Oscillation Mode | Fundamental | |||
| Supply Voltage | 2.8~5.0V | |||
| Frequency Range | 6 ~ 40 MHz | |||
| Frequency Tolerance | ±2.0ppm | |||
| Operating Temperature Range | -20~+70°C, -40~+85°C, or specify | |||
| Storage Temperature Range | -55~+125°C | |||
| Control Voltage Range (VC-TCXO) | 0.5~2.5V | |||
| Supply Current | 6mA Max. | 3.5mA Max. | ||
| Frequency Stability | .Vs Supply Voltage(±5%) Change | ±0.3ppm Max. | ||
| .Vs Load(±10%) Change | ±0.2ppm Max. | |||
| .Vs Aging (@ 1st year) | ±1.0ppm Max. | |||
| Start-up Time | 5ms Max. | |||
| Pulling Range (VC-TCXO) | ±5.0ppm Min. | |||
Dimensions Units:mm
