SMD 3.2×1.5×0.75 32.768KHz
3Y
- 详细介绍

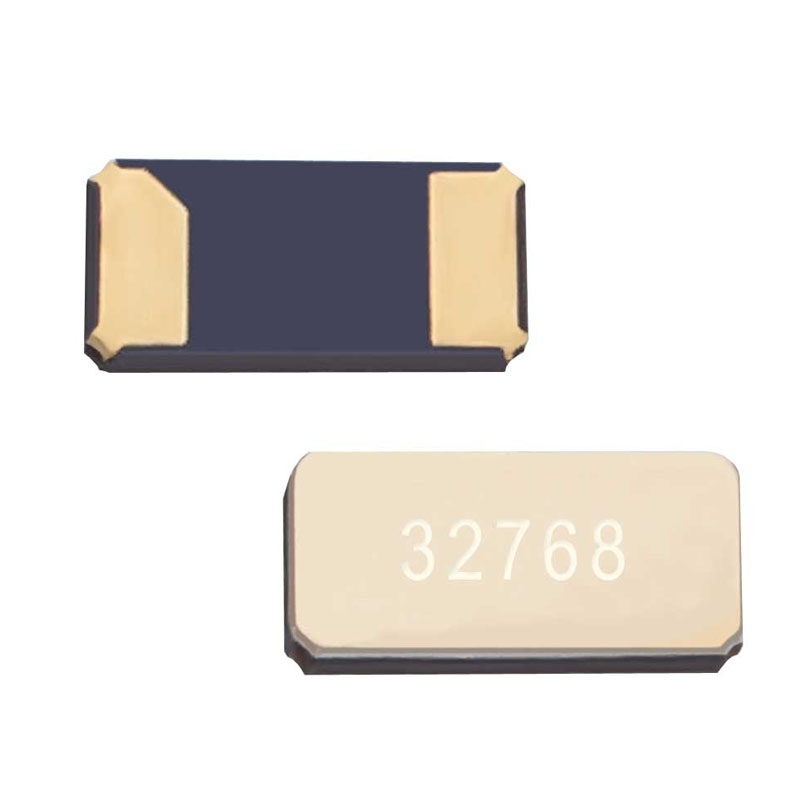

Size: 3.2×1.5×0.75 mm 3Y Series SMD Tuning Fork Crystal
Features特性
2 pads surface mount package 2垫表面安装包
High reliable environmental performance 高可靠的环境性能
Automatic mounting and reflow soldering 自动安装和回流焊接
Application for variety of automotive, Mobile communications, PDA, Wave clock
Wireless communications, digital appliance, etc 各种汽车、移动通信、PDA、波时钟,无线通讯、数码设备等
ROHS Compliant / PB Free 通过无铅认证
Typical specifications 规格参数
Equivalent Series Resistance(ESR) 等效电阻
Outline Dimensions (Unit:mm) 外形尺寸
Features特性
2 pads surface mount package 2垫表面安装包
High reliable environmental performance 高可靠的环境性能
Automatic mounting and reflow soldering 自动安装和回流焊接
Application for variety of automotive, Mobile communications, PDA, Wave clock
Wireless communications, digital appliance, etc 各种汽车、移动通信、PDA、波时钟,无线通讯、数码设备等
ROHS Compliant / PB Free 通过无铅认证
Typical specifications 规格参数
| Type 类型 | 3A |
| Frequency Range 频率范围 | 32.768kHz |
| Frequency Tolerance(at 25 Ċ ) 频率公差(25Ċ) | ±20ppm, or specify |
| Operating Temperature Range 工作温度 | -40~+85°C, |
| Shunt Capacitance(C0) 静电容 | 1.0pF typical |
| Drive Level 激励功率 | 1.0µW Max |
| Parabolic Coefficient 抛物线系数 | (-0.03±0.01)*10-6/°C2 |
| Load Capacitance 负载电容 | 12.5pF, or specify |
| Aging (at 25°C) 老化率 | ±3ppm / at first year. |
| Storage Temperature Range 储存温度 | -55~+125°C |
| Packing Unit 包装单位 | 3000pcs./Reel |
Equivalent Series Resistance(ESR) 等效电阻
| 32.768KHz | 70 KΩ Max. |
Outline Dimensions (Unit:mm) 外形尺寸
